Performance characteristics

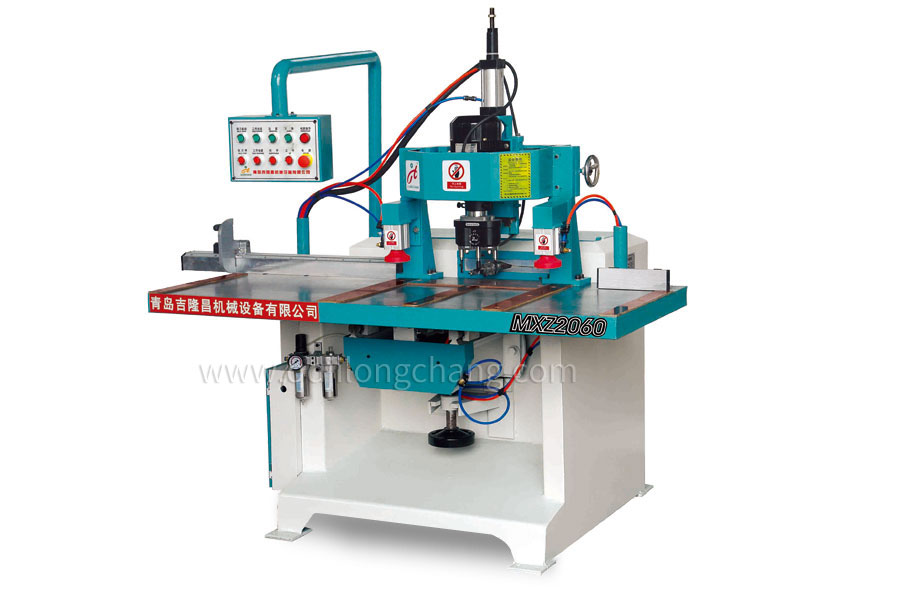

This machine is used to process wooden doors, door frames, window frames, and window sashes. Door locks, door lock steps, door and window hinges, one-time milling grooves are completed, convenient and accurate control of door locks, tongue grooves, and hinge processing dimensions.
Technical parameters
| Max.milling depth | 220mm |
| Max.milling length | 100mm |
| Max.milling width | 30mm |
| Working rising and falling height | 50mm |
| Main spindle speed | 1200转/分 |
| Power | 4.1kw |
| Pneumatic power | 0.45-0.6mpa |
