Performance Introduction

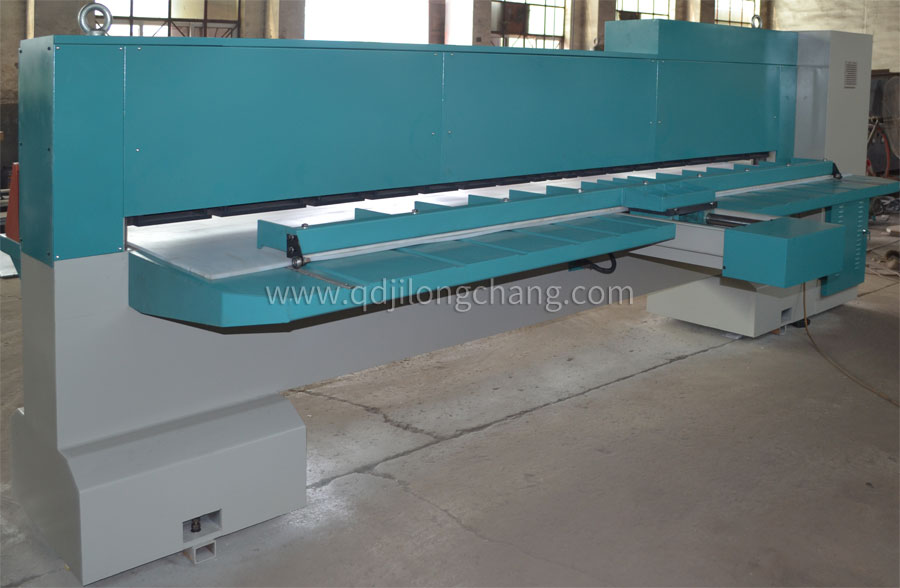

The body of this machine is welded by thickened steel plate, and after high temperature tempering treatment, it can meet the requirements of stability and no deformation of the whole machine.

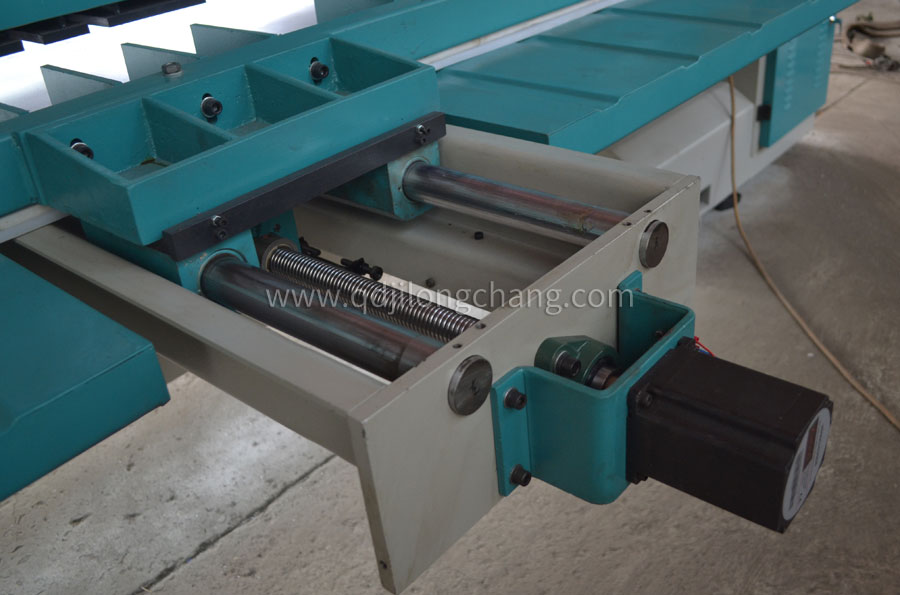

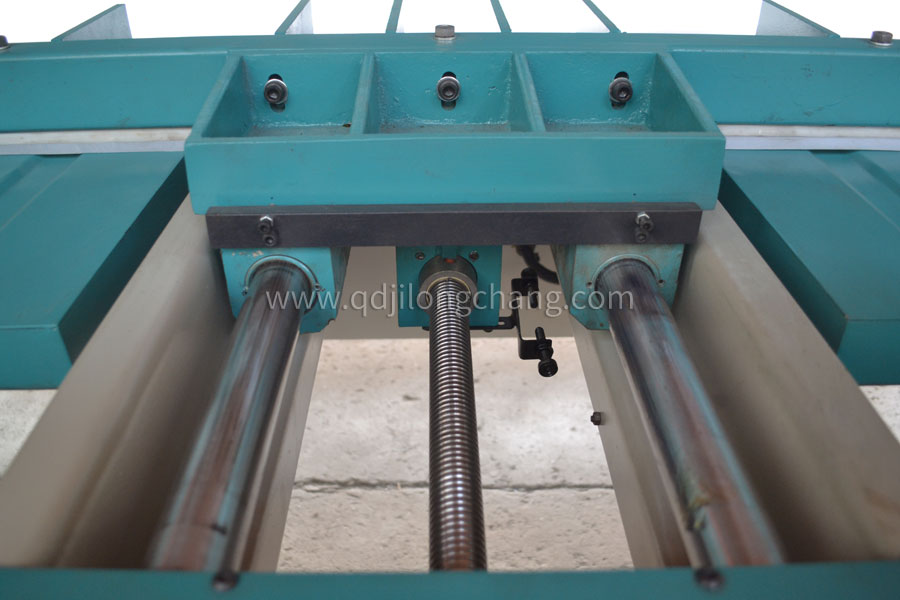

The feeding part of this machine is composed of round bar guide rails and high-precision ball screws. It is driven by a stepping motor to ensure uniform and stable transmission speed and accurate feeding size.
This machine uses high-quality sharp steel blades, which are sharp and durable. It reduces the number of sharpening and improves work efficiency. It also ensures that the veneer will achieve the effect of no chipping and no burrs.
This machine adopts two pairs of Omron beam photoelectric protection devices, which is safe and reliable in operation.

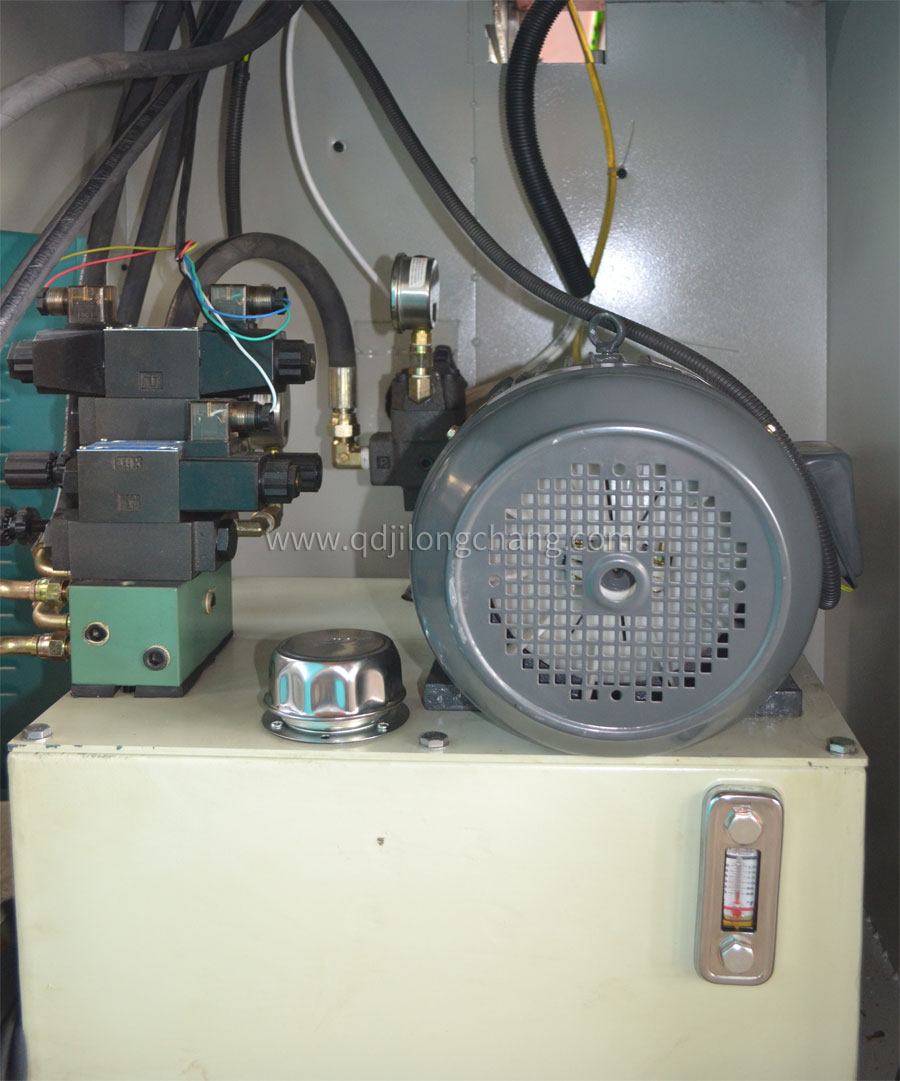

This machine all adopts the Taiwan Yuken system, which greatly reduces the failure rate of the equipment, ensures the normal operation of the equipment, and further improves the working efficiency of the equipment.

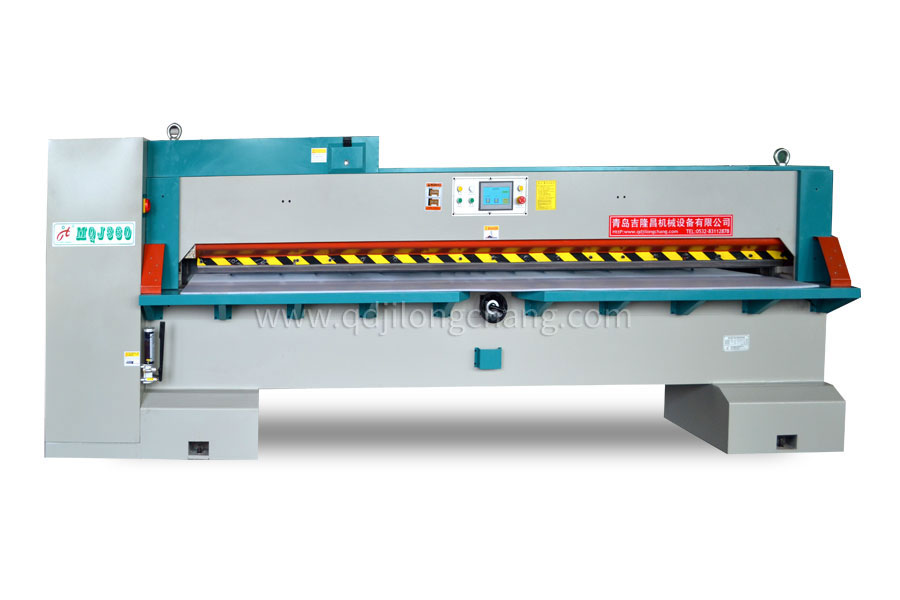

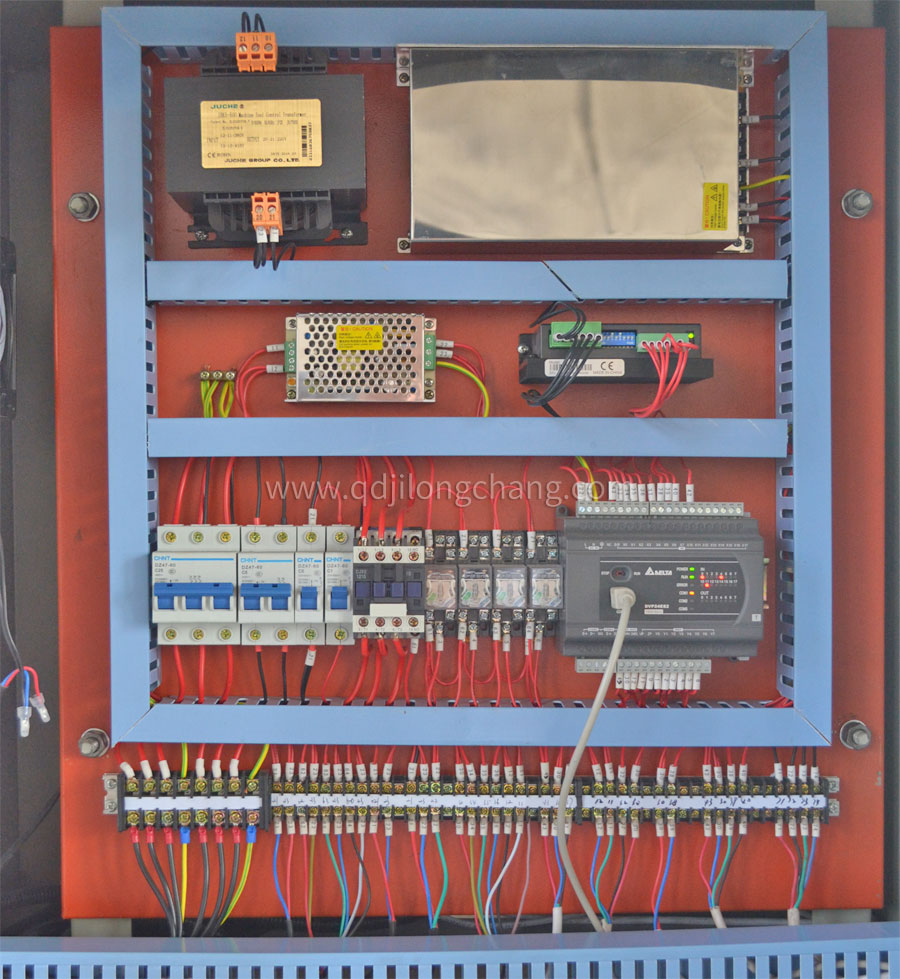

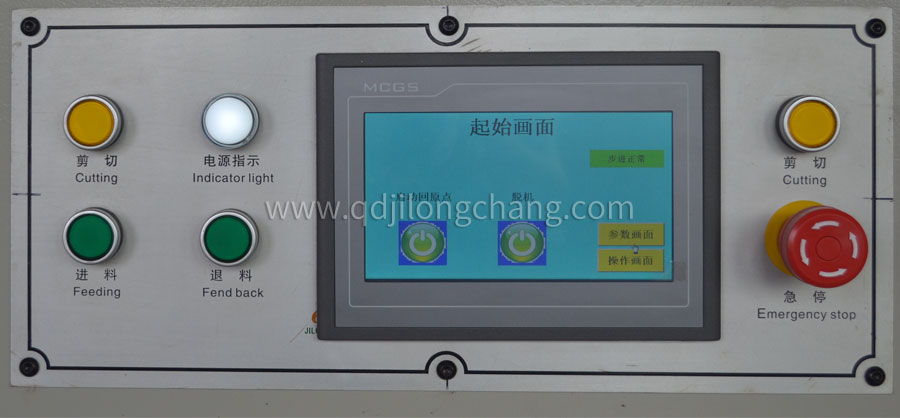

This machine adopts man-machine interface, central touch panel and PLC control, with clear viewing angle and easy operation.
| Type | MQJ160 | MQJ260 | MQJ310 | MQJ360 |
| Max.cutting length | 1600 | 2600 | 3100 | 3600 |
| Max.cutting thickness | 50 | 50 | 50 | 50 |
| Oil pump power | 4 | 4 | 4 | 4 |
| Feeding motor power | 0.1 | 0.1 | 0.1 | 0.1 |
| Max.working pressure | 10 | 10 | 10 | 10 |
| Overall size | 2470×1450×1600 | 3680×1680×1600 | 4180×1680×1600 | 4580×1680×1600 |
| N/W | 2350 | 2700 | 2850 | 3300 |
