Performance characteristics

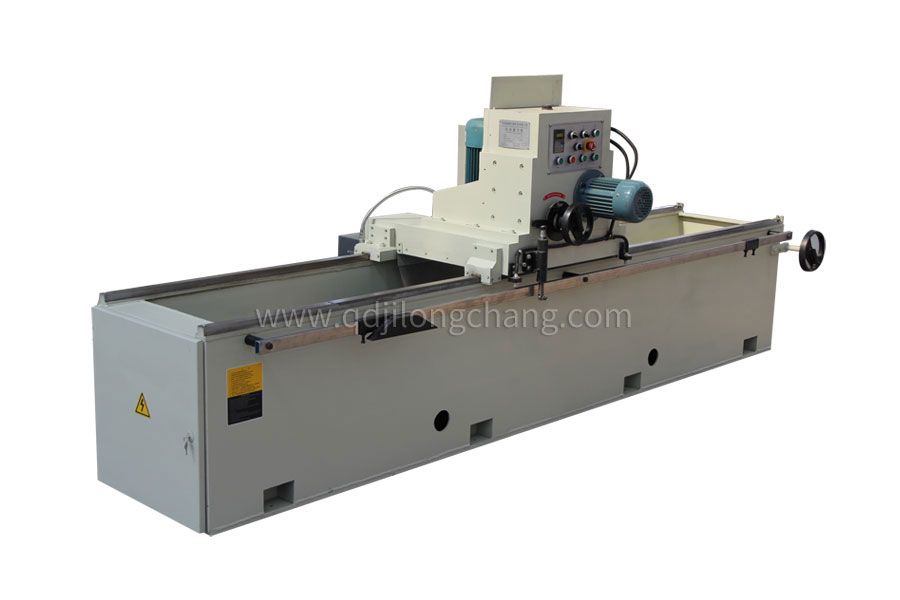

This machine tool is a new type of knife grinder with international advanced level launched on the basis of fully digesting and absorbing similar types of machines at home and abroad. It is an indispensable equipment for sharpening various blades.
The workbench adopts advanced powerful electromagnetic chuck with super magnetic force.
Road Rail is the first to import LG-type precision linear rails to ensure high accuracy of the carriage.
The double screw structure is adopted in the stand to ensure that the grinding wheel moves vertically without clearance.
The main motor adopts a special grinding head motor, which not only has good working performance and high precision, but also is convenient for cooling.
The carriage drive adopts a hydraulic system, which runs smoothly and can change direction freely.
Technical parameters
| Type | MF2532 | MMD3000 |
| Maximum tool length | 3200mm | 3000mm |
| The workbench angle range | 0-90° | ±90° |
| Table width | 220m | 200m |
| Apron speed range | 7-16m/min | 4-25m/min |
| The amount of wheel feed | 0.02mm | 0.02mm |
| Wheel speed | 19m/s | 15m/s |
| Wheel size | 255×205×125mm | 200×100×32mm |
| Grinding wheel inclination | 0-7° | ±30° |
| Main motor | 7.5kw | 4kw |
| 液压电机 | 2.2kw | 2.2kw |
| 冷却泵电机 | 0.15kw | 0.15kw |
